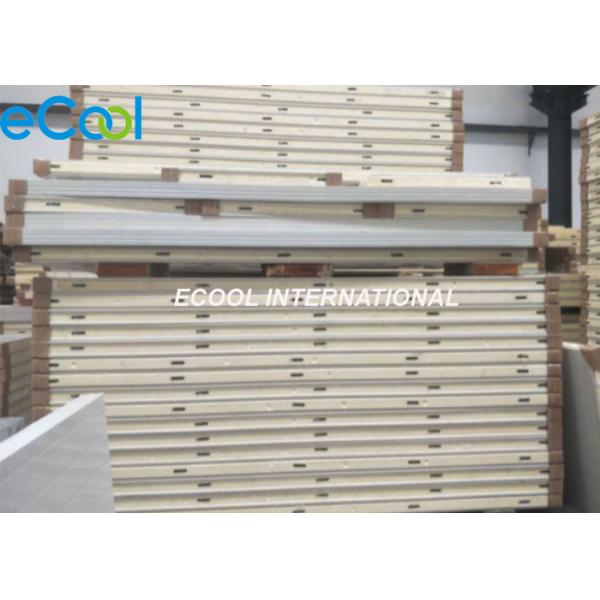

Insulated Freezer Panels With Installation Hook Suitable for Small and Middle Cold Room

Name: Insulated Freezer Panels With Installation Hook Suitable for Small and Middle Cold Room
Brand: Ecool
Price: 1 USD

Cheap Insulated Freezer Panels With Installation Hook Suitable for Small and Middle Cold Room for sale

Brand Name : Ecool

Model Number : EP009

Certification : ISO9001,CCC,

Place of Origin : China

MOQ : 100 square meters

Price : Negotiable

Supply Ability : 10000 square meter/year

Delivery Time : 3-4 Working weeks

Packaging Details : Standard Export Package

Key word : Insulated Freezer Panels With Installation Hook

Cor thickness : 50、75、100、120、150、180、200、250 mm

Surface : PPGI, stainless steel, aluminum

Surface type : with or without wave

suiface thickness : 0.4~0.8mm

Max. length : 10 meter

Contact Now

Insulated Freezer Panels With Installation Hook Suitable for Small and Middle Cold Room

Feature

Strong and Lightweight: insulated freezer panels are incredibly strong, lightweight and easy-to-install, allowing for longer spans and lower installation costs. In fact, cold storage insulated panels, fabricated from steel, are so strong and durable that we are able to reinforce and strengthen a metal building system’s structure.
Ease of Installation: cold storage insulated panels are easy to install, using a simple "Embedded hook" joint. Our freezer panels simply slide into place and are easily secured to the building's steel superstructure, allowing us to construct metal building systems much faster than general construction times, saving you time and money.
Variety of Dimensions: Our advanced freezer panels are made to order, in a variety of thicknesses between 50mm and 250mm. we continuous laminating line can manufacture panels in any desired length and to each job’s specific tolerance needs, with lengths up to 10 meter, allowing us to meet the most demanding project requirements

Application

besides cold room, our panel could be used for

Panel information

Type	Polyurethane Sandwich Panels
Panel Material	Color steel sheet,stainless steel sheet,or emboseed aluminum sheet,galvanized steel sheet,polyurethane sheet.
Place of Origin	China
Length	Customize
Effective Width	960mm
Core thickness	50mm,75mm,100mm,120mm,150mm,180mm,200mm,250mm
Features	Soundproof, fireproof, waterproof
Certificates	SGS, ISO14001, ISO9001,
Color	White, Gray, Sliver, Whit gray...etc,as required
Lifetime	10-30 years
Fire proof rate	B2

Technical Specifications

The Technical Standard of Eccentric hook panel
No.	Item		Unit	Tel. requirement
1	Density		KG/M3	40±2
2	Heat conductivity		W/m.k	<=0.024
3	Compressive strength		>=150	>=150
4	Combustion performance	Average burning time	S	<=90
4	Combustion performance	Average burning range	mm	<=50
5	The bond strength between sandwich core layer and panel		Mpa	>0.1
6	Stripping performance	The core material on the surface	-	uniform distribution
6	Stripping performance	The adhesive area of each stripping surface	-	>=90%

Choose the right thickness for your building

Thickness	Suitable indoor temperature
50	≥ 15°C
75	≥ 10ºC
100	≥ -5ºC
150	≥ -20ºC
200	≥ -25ºC
250	≥ -35ºC

Different surface materials' available thickness of panel

Surface material

Thickness

Surface streak

50
mm

75
mm

100
mm

120
mm

150
mm

175
mm

200
mm

250
mm

Flat

Ribs grain

Finely laminated

Colored steel sheet(0.326-0.8mm)

√

Stainless steel sheet(0.4-0.8mm)

√

Embossed aluminium sheet(0.5-3mm)

√

Galvanized steel sheet (0.5-2mm)

√

Polyurethane sheet

√
